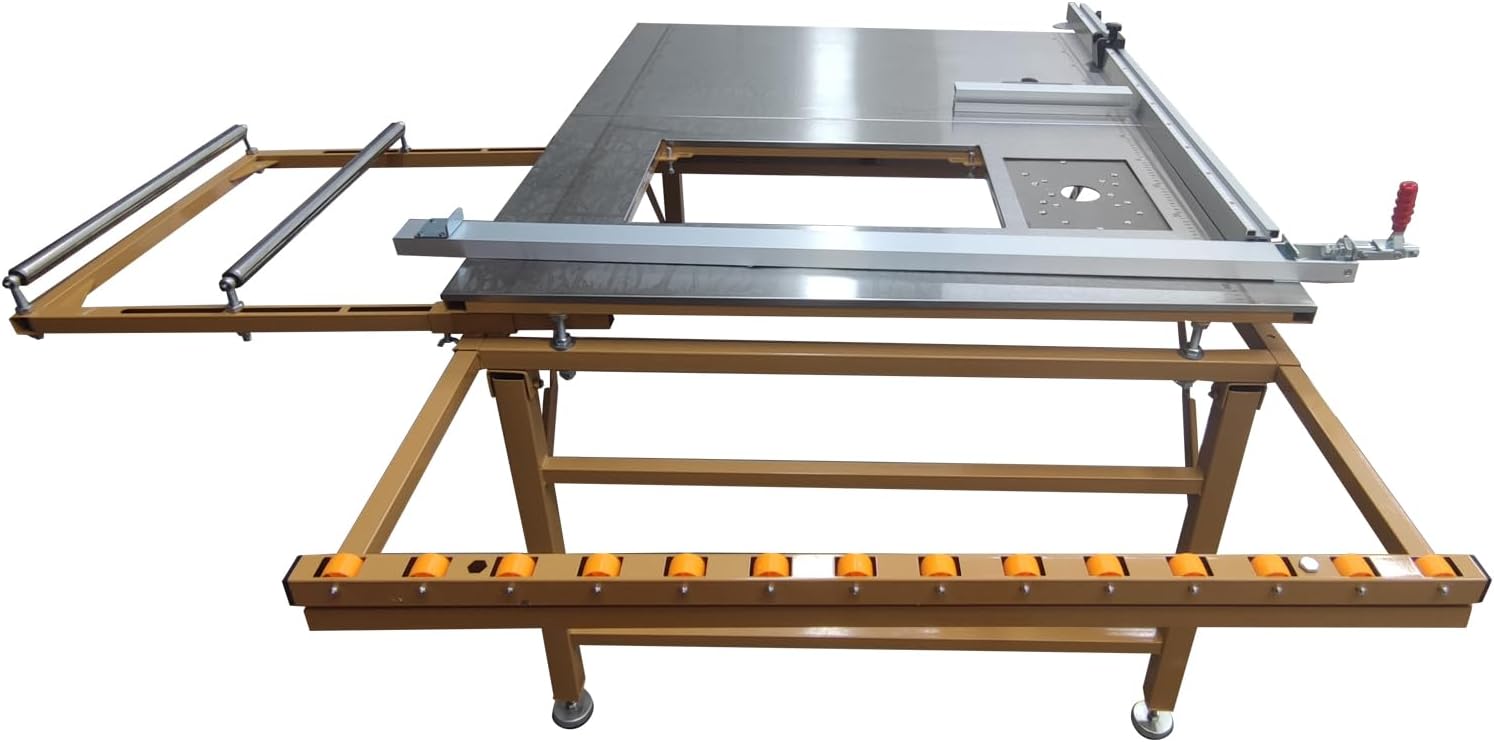

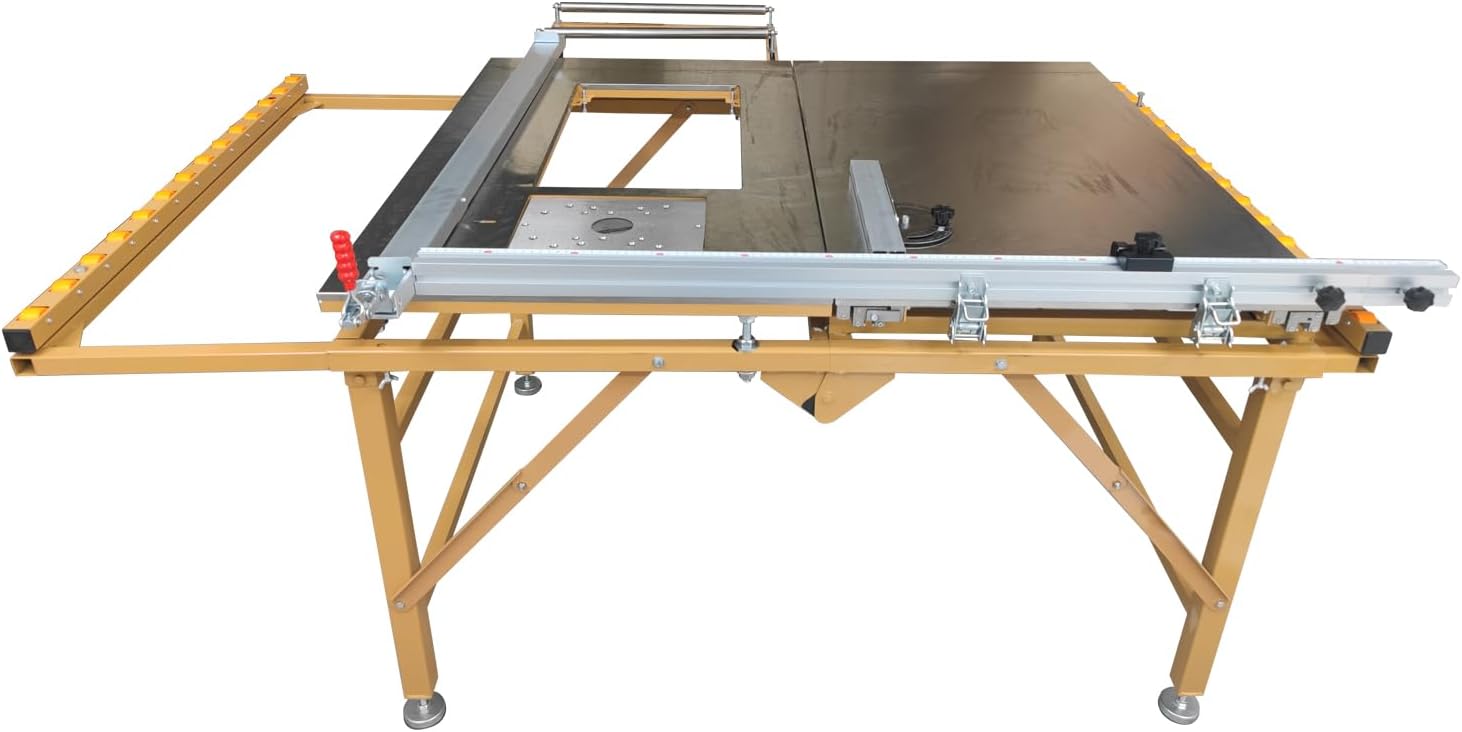

Table Saw with Stand Wood Cutting Saw Table with Adjustable Blade Height for Furniture Making,Woodworking Folded and 45° Diagonal Cut 220V

Wood Cutting Machine Saw Table 220V: The foldable dust-free saw has the characteristics of compact structure, folding and stretching, and easy to carry. Aluminum alloy flip plate, oblique cutting 45 degrees, no adjustment saw blade can be fine-tuned, environmental dust and other advantages.Saw Bench Parameters:Saw table extension: 27.5"（700mm）Folding size: 39.3*23.6*12.5"（ 1000×600×320mm）Square rail size: 1.5/2.3"（40/60mm）Length: 47.2-86.6" （1200-2200mm）Push table stroke: 59"（1500mm）Multifunctional flip board: large gong machine, small gong machine, curve saw.Saw Parameters:Saw core size: 19.6*11.8*13.7"（500×300×350mm）Saw blade size: 8 "+4"（20+10cm）Subsaw power: 1.8KWFemale saw power: 2.6KWSuction power: 1.2KWOperation method：1. Equipment debugging Saw blade height adjustment: Ensure that the saw blade is about 5mm higher than the wood cutting surface. Ideally, two saw teeth should be visible. If it is too high, it may cause danger; if it is too low, the cutting surface may be charred or uneven.Backrest calibration: Use a right-angle square to measure the perpendicularity between the backrest and the saw blade to ensure that the cutting reference surface is straight and to prevent the wood from shifting or bouncing back.2. Cutting implementation Feeding posture: Push the wood forward with the thumb of the right hand and press down with the four fingers to maintain stability. The body should be on the left side of the saw blade to avoid rebound injury. When cutting long pieces of wood, auxiliary support or collaborative operation by multiple people is required. Feeding control: For short wood materials (width <15cm), use a push rod for assistance. Manual pushing is strictly prohibited. Narrow wood (width less than 5cm) must use safety push blocks.

• CHARACTERISTIC FLUENCY BAR:Auxiliary push board is more convenient,equipped with a powerful chainsaw for efficient operation.
• DUST-FREE OPERATION:Equipped with a dust collection bag for dust-free operation, while the arc cutting guide enables precise multi-angle cutting.
• MOVE EASILY:Folding platform with swivel casters for effortless mobility. Work surface angle is freely adjustable.

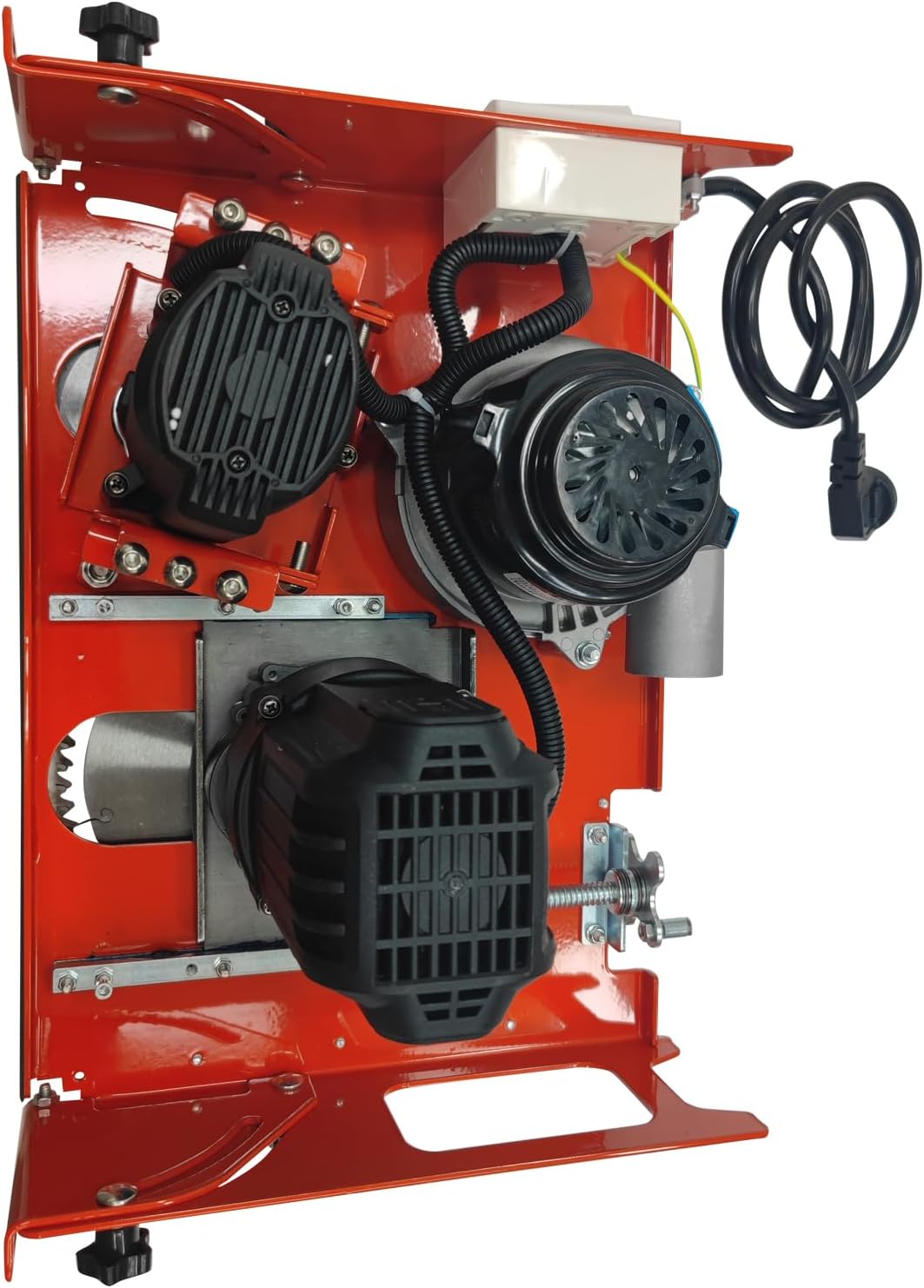

• STRONG VACUUM: High-efficiency synergy between a high-torque motor and a powerful vacuum system. The motor features a high-density copper core winding design, maintaining stable rotational speed even when cutting dense materials like hardwood and composite panels.

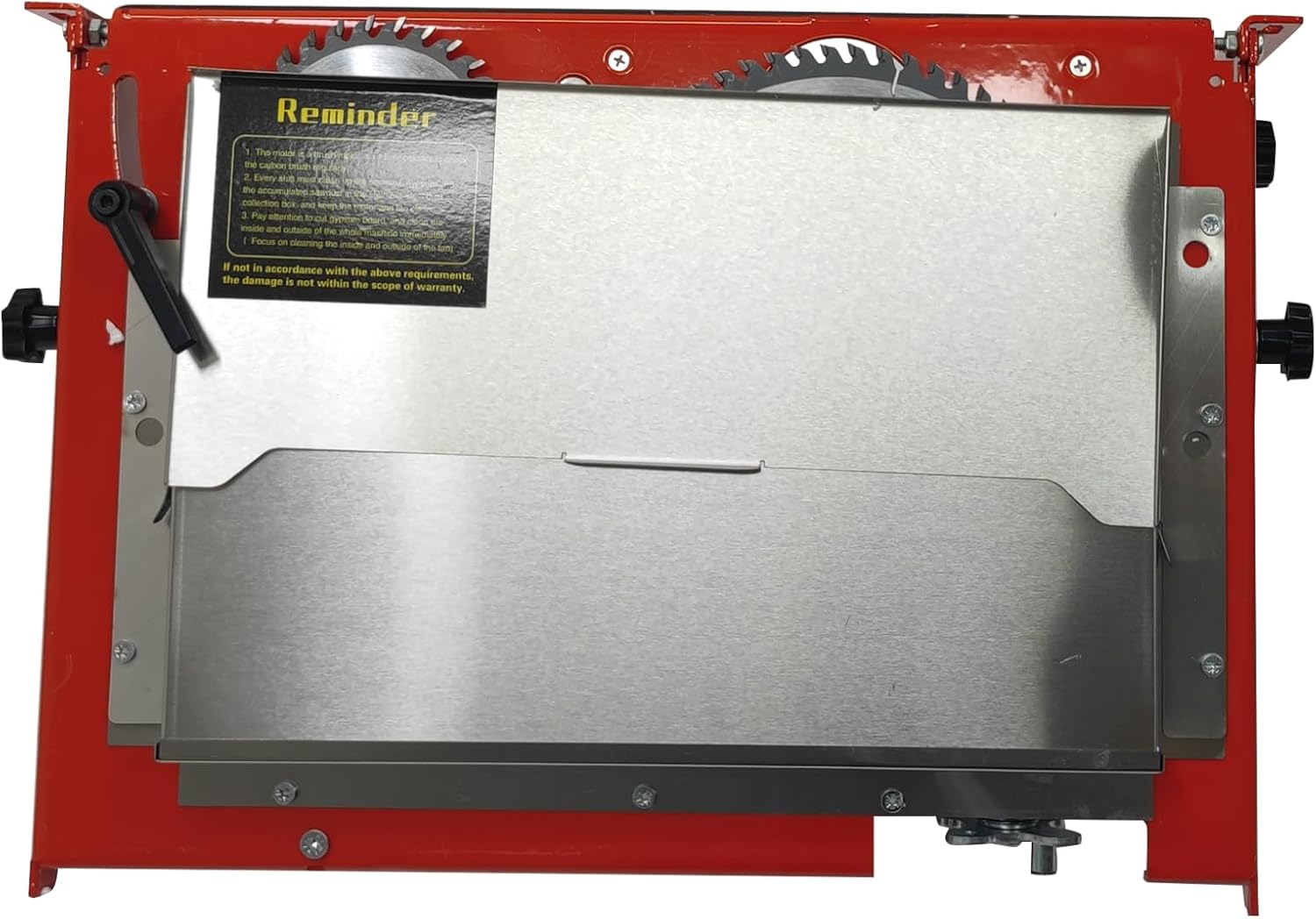

• SAW PARAMETER: Saw core size: 19.6*11.8*13.7"（500×300×350mm）;Saw blade size: 8 "+4"（20+10cm）; Subsaw power: 1.8KW; Female saw power: 2.6KW; Suction power: 1.2KW
